26-34lt/hr Electric (12V DC) Pressure Supply Unit Economy RAINMAN
€6.352,00
RAINMAN Watermaker Electric Pressure Supply Unit
- Description
- SPECIFICATIONS
Description

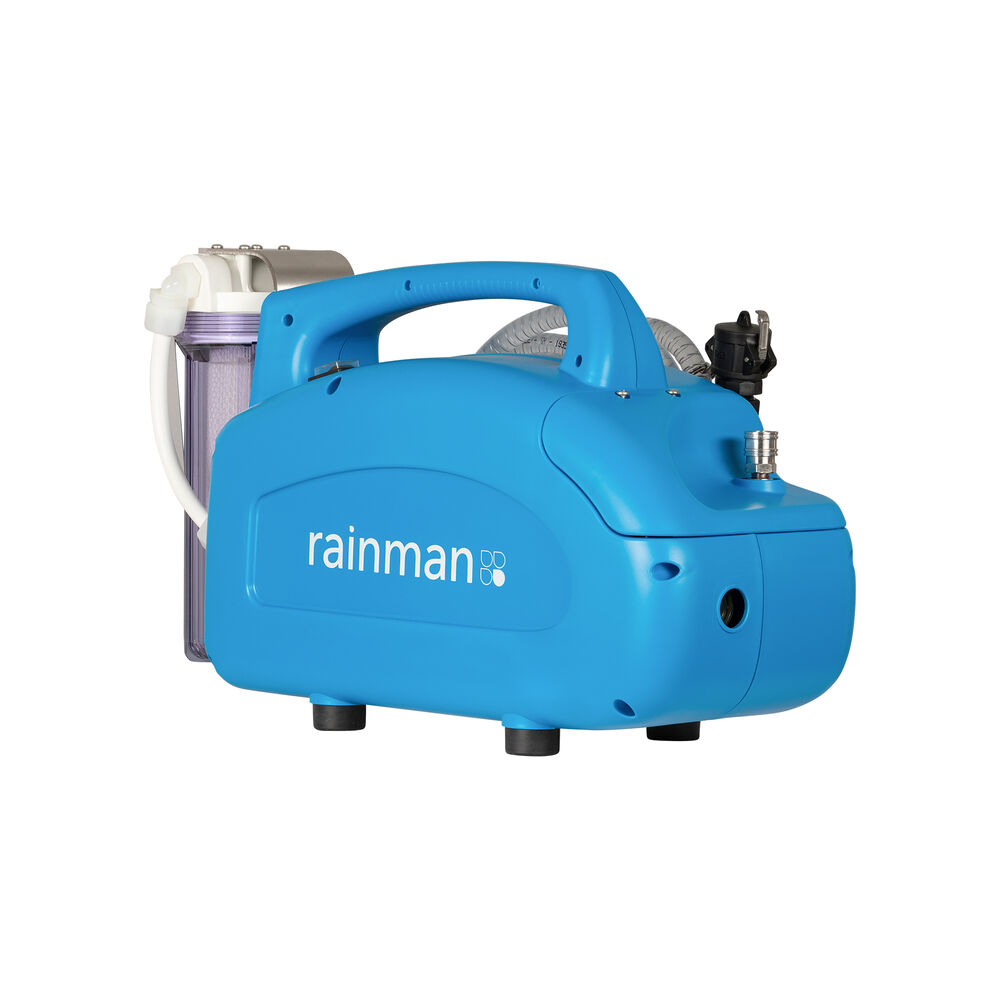

RAINMAN 12V DC Electric Pressure Supply Unit
12V DC ELECTRIC DESALINATOR
This lower power, lower output system is ideal for use when you are running solar / battery for your main power source.
Water Everywhere
Rainman watermakers are a compact and portable solution designed to generate a fresh water supply from seawater.
Our system consists of a Pressure Supply Unit (PSU) and a Reverse Osmosis Unit (RO). The PSU draws water up, filters it, and pressurises it for the RO unit, which extracts fresh potable water for your tanks. With the brackish water flow gauge, you can use the system in seawater, brackish water, or freshwater applications.
Built to last
We use only top quality components from the best manufacturers: Honda, DuPont FILMTEC, General Pump, Noshok, and Parker. Our filters, membranes and replacement parts are non-proprietary for ease of service worldwide.
Versatile
Our system can be easily transferred between boats or used in remote land based applications. Keep your watermaker when you change your boat.
The Rainman Advantage
Our simple and robust system is designed for ease of use and low maintenance. This fresh approach to desalination eliminates unnecessary componentry and electronics. Not only will the initial cost of a Rainman watermaker be lower than other systems, but the simple design and high build quality reduces ongoing maintenance costs.
Flexibility
Choose to install your system or run it portable, allowing you to reduce weight while not cruising.
Reliability
Using simple pumps and no electronics maximises the uptime of your watermaker.
Economical
Modest initial price and low maintenance requirement minimises life cycle cost.
Investment retention
Keep your watermaker when you change boats.
Permanent magnet TEFC DC Motor
410 watts steady state power consumption
Current draw 30 amps
Power cord length: 1.4 metres including battery connectors
Integrated flexible impeller lift pump
2 metre (6 ft) maximum lift above sea level
High pressure pump 316 stainless steel
316SS/ceramic relief valve to prevent overpressurisation
Sound levels – 58dB at 6 metres (20 ft)
Case of sturdy injection moulded polypropylene
PSU mounting seat: fibreglass reinforced nylon with strap
RO Case (mountable if desired): rotomoulded polyethylene
10x2.5″ 5m prefilter to remove sediment mounted on PSU
0-40lph (11gph) product water flow meter, into RO case
Valve/gauge control assembly integrated into RO case
5 metre (16 ft) intake hose fitted with one way valve to remain primed, with detachable strainer
3 metre (10 ft) brine waste discharge hose
Dimensions of PSU:
Length: 600mm (23.6″)
Width: 270mm (10.6″)
Height: 375mm (14.8″)
Weight: 24kg (53lb)
Dimensions of membranes:
Length: 1180mm (46.5″)
Width: 250mm (9.8″)
Height: 130mm (5.1″)
Weight: 11kg (24lb)
